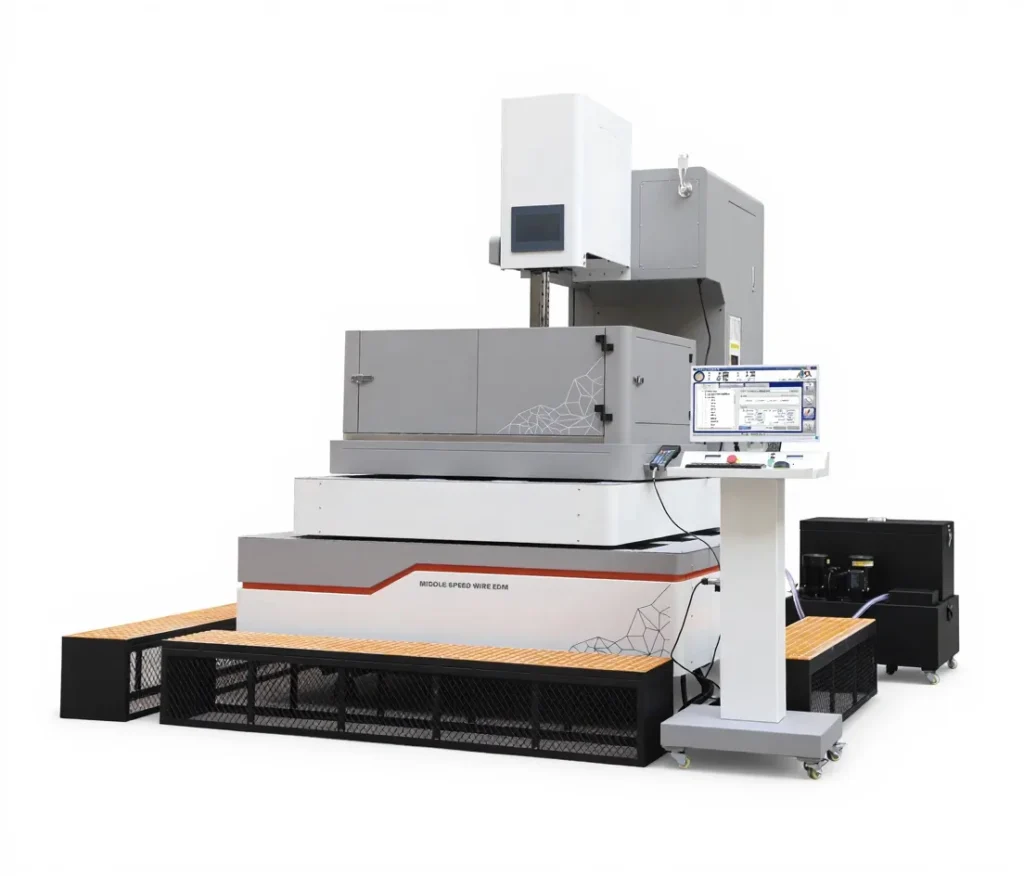

BQ800 CNC Wire Cut EDM Machine, Used, High-Precision
Model: BQ800
Brand: CXB TOOLS
- 820×650 mm X/Y travel, 1400 kg load: handles large molds and heavy workpieces without re-fixturing.
- 0.01–0.02 mm precision, ±0.005 mm repositioning: repeatable passes on intricate cavities.
- ±15°/150 mm taper, 0.1–0.2 mm wire: covers fine detail and draft angles.
- CE, GS, RoHS, ISO 9001: documented compliance for European import.
- Customized sizing available: we build to your specification and quote FOB, CIF or DDP.
Size：
CXB TOOLS
Specifications
Description
The BQ800 is a used CNC wire cut EDM machine in the high-end class, built for toolrooms and production shops that need fine wire work without a new-machine budget. It runs a Baqi control system with closed-loop control and four simultaneously controlled axes (XYUV), so it cuts tapers and complex profiles to a processing precision of 0.01–0.02 mm. Importers and distributors sourcing CNC wire cut EDM capacity will find a used unit with a known specification, sold under our own name and inspected before it leaves.
Key features
- Closed-loop control with 0.001 mm directive unit — small moves stay repeatable, with repositioning accuracy of ≤±0.005 mm.
- Four controlled axes (XYUV) — taper cutting up to ±15°/150 mm with top and bottom water guides, for dies and profiles.
- 1106×840 mm worktable, 820×650 mm X/Y travel — handles workpieces up to 1360×860 mm, 380 mm thick and 1400 kg in weight.
- Variable frequency wire speed of 1–11.4 m/s — you adjust wire speed to the cut instead of running one fixed rate.
- Cutting efficiency ≥300 mm²/min, roughness 0.7–1.4 µm on cut 1, trim 2.
- 2.0 kW total consumption, ≤70 dB noise — modest power draw and a quieter floor than a fixed-speed wire EDM.
Specifications
| Item | Value |
|---|---|
| Condition | Used |
| Control system | Baqi System |
| Processing precision | 0.01–0.02 mm |
| Worktable size | 1106×840 mm |
| X/Y travel | 820×650 mm |
| Max workpiece size | 1360×860 mm |
| Max cutting thickness | 380 mm |
| Max load weight | 1400 kg |
| X/Y min. directive unit | 0.001 mm |
| U/V travel | 80×80 mm |
| Max cutting taper | ±15°/150 mm |
| Wire diameter | 0.1–0.2 mm (standard 0.18 mm) |
| Wire speed | 1–11.4 m/s, variable frequency |
| Max wire storage length | 330 m |
| Reposition accuracy | ≤±0.005 mm |
| Max cutting efficiency | ≥300 mm²/min |
| Roughness (cut 1, trim 2) | 0.7–1.4 µm |
| Water tank volume | 120 L |
| Power supply | Three-phase 380V AC/50Hz |
| Total power consumption | 2.0 kW |
| Max machining current | 10 A |
| Machine size | 2090×2330×2600 mm |
| Gross weight | 5300 kg |
| Noise | ≤70 dB |
| Simultaneously controlled axes | XYUV, 4 axis |
| Certification | GS, CE, RoHS, ISO 9001 |
| Origin | Zhejiang, China |
Applications
The BQ800 suits shops cutting punching dies, precision stamps, extrusion tooling and small production runs in hardened steel. The 380 mm thickness ceiling and 1400 kg table load mean it also takes larger plate work, while the ±15° taper covers draft angles on die work.
Customization and ordering
Size and packaging can be customized on request; tell us your configuration and box or crating needs at quotation. Price for the unit as listed is 18,000.00 USD. As a factory-direct supplier we handle the export documents your customs broker needs; confirm the terms that suit you (FOB, CIF or DDP) when you request a quote. The unit carries GS, CE, RoHS and ISO 9001 certification.
FAQ
What is the maximum cutting thickness on the BQ800?
380 mm, with a maximum workpiece size of 1360×860 mm and a 1400 kg table load.
What wire diameter does it run?
0.1–0.2 mm wire, with 0.18 mm as standard, at a wire speed of 1–11.4 m/s (variable frequency) and up to 330 m of stored wire.
FAQ
The BQ800 is a used CNC wire cut EDM machine in the high-end class. It is sold under our own name and inspected before it leaves, so you buy a used unit with a known specification rather than an unknown history.
Processing precision is 0.01–0.02 mm, with a 0.001 mm minimum directive unit on X/Y and repositioning accuracy of ≤±0.005 mm. Closed-loop control with the Baqi system keeps small moves repeatable in toolroom work.
The worktable is 1106×840 mm with 820×650 mm X/Y travel. It accepts workpieces up to 1360×860 mm, 380 mm thick and 1400 kg in weight, with four simultaneously controlled XYUV axes for taper cutting up to ±15°/150 mm.
It runs 0.1–0.2 mm wire (0.18 mm standard) at a variable frequency wire speed of 1–11.4 m/s, with up to 330 m wire storage. Power supply is three-phase 380V AC/50Hz, total consumption 2.0 kW.
As a factory with OEM and ODM capability, we handle customization from mold to packaging, including branding and packaging language. Tell us your market and requirements and we confirm the model details at quotation.
The machine carries CE certification. We quote FOB, CIF or DDP depending on your market and confirm lead time per model, and we ship to European and global ports with the export documents your customs broker needs.
